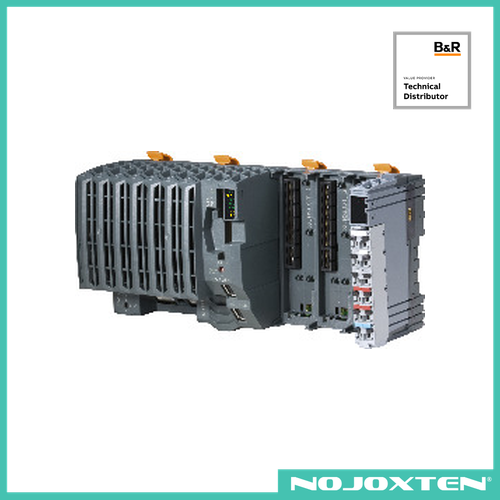

The X20CP3586 is a powerful controller for the X20 system. This controller is especially useful for applications that require short cycle times, have to process very large amounts of data or carry out floating point operations. It is clocked at 1.6 GHz and equipped with 512 MB DDR2 SDRAM.USB, Ethernet, POWERLINK and removable CompactFlash are all included as standard features. The standard Ethernet interface is capable of handling communication in the gigabit range. For even more real-time network performance, the onboard POWERLINK interface supports poll response chaining mode (PRC).The controller is equipped with 3 slots available for X20 communication modules. Various bus and network systems can easily be integrated into the X20 system through the use of communication modules.

X20C BC POWER FEED,24V,BUS SUPPLY

This module is equipped with one input for SSI absolute encoders with 5 V encoder signal.

The module is equipped with 1 input for an ABR incremental encoder with 24 V encoder supply. The encoder inputs are monitored (A, B, R). The module is suitable for incremental encoders with push-pull outputs with no complementary signal.

The module is equipped with 1 input for an ABR incremental encoder with 24 V encoder supply. The encoder inputs are monitored (A, B, R, A\, B\, R\). The module is suitable for incremental encoders with symmetrical push-pull outputs.The plug-in module does not come equipped with line terminating resistors. For this reason, it is possible to connect encoders with low output current; nevertheless, the module is suitable only for low counter frequencies or short encoder cables due to possible line reflections.

This module can be used to determine paths and to calculate speeds at the same time. The ultrasonic transducer rods are connected directly to the RS422 interface. Communication to the transducer rod takes place using start/stop signals. With the DPI/IP protocol, it is also possible, for example, to read operational properties directly from the transducer. During service (when a transducer is being exchanged) the machine can be started again quickly without additional configuration work. The module is designed for connecting 2 transducer rods with a total of up to 4 paths. That means, for example, that 2 ultrasonic transducers with 2 magnets each or one with 4 magnets can be used. The combination 3/1 is also possible. The module provides 24 VDC as an external supply for the sensor.

This module is a multifunctional counter module. It can be connected to two SSI encoders, two ABR encoders, four AB encoders or eight event counters. Four outputs are available for pulse width modulation. The functions can also be mixed.

X20 DIGITAL 2XI, 24V, SINK, 3 WIRE

X20 DIGITAL 2XI, 24V, SINK,2 COUNT.,3 W.

X20 DIGITAL 4XI, 24V, SINK, 3 WIRE

X20 DIGITAL 6XI, 100-120VAC

X20 DIGITAL 8XI, 24V, SINK, 1 WIRE

X20 DIGITAL 12XI, 24V, SINK, 1 WIRE

X20 DIGITAL 16XI, 24V, SINK, 1 WIRE

X20 DIGITAL MIX 8XI 4XO, 24V 0.5A 1 L.

X20 DIGITAL 2XO, 24V 0.5 A, SOURCE, 3 W.

X20 DIGITAL 2XO, 230VAC 2A PHASE CONTROL

X20 DIGITAL 2XO, RELAY CO 240VAC 5A

X20 DIGITAL 4XO, 24V 0.5A, SOURCE, 3 W.

X20 DIGITAL 4XO, 24V 2A, SOURCE, 3 W.
