The module is equipped with 4 inputs with 16-bit digital converter resolution. It is possible to select between the current and voltage signal using different terminals.

The module is equipped with 4 inputs with 16-bit digital converter resolution. It is possible to select between the current and voltage signal using different terminals.

X20 ANALOG 8XI, +/-10V, 12 BIT, 1MS

The module is equipped with 8 inputs with 12-bit digital converter resolution. It is possible to select between the two current ranges 0 to 20 mA and 4 to 20 mA.

X20 ANALOG 2XO, +/-10V/0..20 MA, 12 BIT

The module is equipped with 2 outputs with 16-bit (including sign) digital converter resolution. It is possible to select between the current and voltage signal using different terminals. This module is designed for X20 6-pin terminal blocks. If needed (e.g. for logistical reasons), the 12-pin terminal block can also be used.

X20 analog output module, 4 outputs, 10 V or 0 to 20 mA / 4 to 20 mA, 13-bit converter resolution

The module is equipped with 4 outputs with 16-bit (including sign) digital converter resolution. It is possible to select between the current and voltage signal using different terminals.

Power monitoringThese modules measure active, reactive and apparent power individually for each of the 3 phases as well as all of them collectively. The power consumption of each phase is also recorded individually and in total. In addition, the modules provide the RMS values for voltage and current on the 3 phases. When measuring the current, the value of the current through the neutral conductor can also be detected and monitored. Measurement of the mains frequency and the phase angle of the 3 phases (current and voltage) complete the power measurement data.Energy managementThe integrated functions on the modules map the immediate power requirements of the machine in detail as well as record its total power consumption. For the user, all relevant data is prepared and made available in the process image.The ability to measure currents and voltages up to the 31st harmonic enables higher precision recording of RMS values than is generally possible. This allows the modules to easily cope with irregular sine curves and makes them well-suited to renewable energy applications. In these types of applications, for example, being able to accurately measure the frequency at a resolution of 0.01 Hz between 45 and 65 Hz is a great advantage. In general, the modules are suitable for use with 1-phase, 2-phase or 3-phase networks.NetTime timestamp of readout momentsFor many applications, not only the measured value is important, but also the exact moment when a group of measured values is read out. The module is equipped with a NetTime timestamp function for this that supplies a timestamp for the recorded position and trigger time with microsecond accuracy.The timestamp function is based on synchronized timers. If a timestamp event occurs, the module immediately saves the current NetTime. After the respective data is transferred to the CPU, including this precise moment, the CPU can then evaluate the data using its own NetTime (or system time), if necessary.

The module is equipped with 2 inputs for J, K, N, S, B and R thermocouple sensors. The module has an integrated terminal temperature compensation. This module is designed for X20 6-pin terminal blocks. If needed (e.g. for logistical reasons), the 12-pin terminal block can also be used.

The module is equipped with 4 inputs for PT100/PT1000 resistance temperature measurement.

The module is equipped with 6 inputs for J, K, N, S, B and R thermocouple sensors. The module has an integrated terminal temperature compensation.

X20 COMPACT-S BUS BASE, BASE FOR INTEGRATED RS232 INTERFACE, X20 CONNECTION, X20 LOCKING PLATES X20AC0SL1/X20AC0SR1 (LEFT AND RIGHT) INCLUDED

X20 BUS CONTROLLER BASE

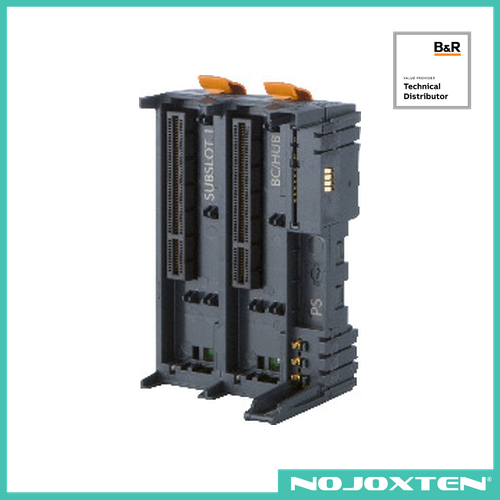

X20 BUS CONTROLLER BASE + 1 SLOT

X20 BUS CONTROLLER BASE + 2 SLOT

X20 BUS CONTROLLER POWERLINK

X20 BUS CONTR.POWERLINK EXTENDABLE

X20 BUS CONTROLLER POWERLINK, REDUNDANCY

X20 BUS MODULE WITH POWER BUS SEPERATION
