X20 COMBINED MODUL 1AI, 1AO, 4DI, 2DO

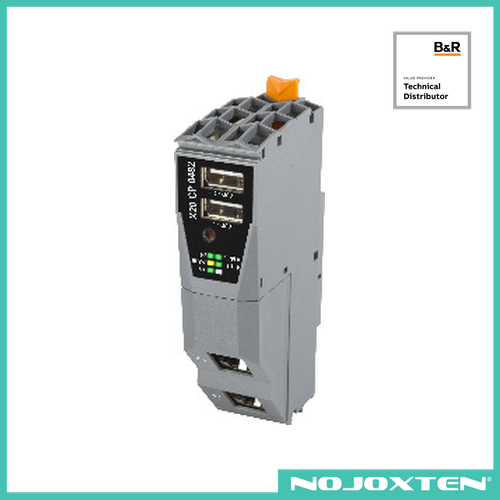

The controllers in the X20 Compact-S family are both powerful and compact. The fanless, battery-free design of these controllers means they are completely maintenance-free.The X20CP0482 is equipped with an ARM Cortex-A9-300 processor, 128 MB RAM and 1 GB built-in flash drive. The FRAM for storing remanent variables has 16 kB available.With POWERLINK, Ethernet, USB and RS232, the controller offers a wide range of communication options. An optional RS485 or CAN interface is available. If the application requires additional interfaces, the controller can be modularly expanded by one or two X20 interface slots. This allows the entire product range of X20 fieldbus interfaces to be used.

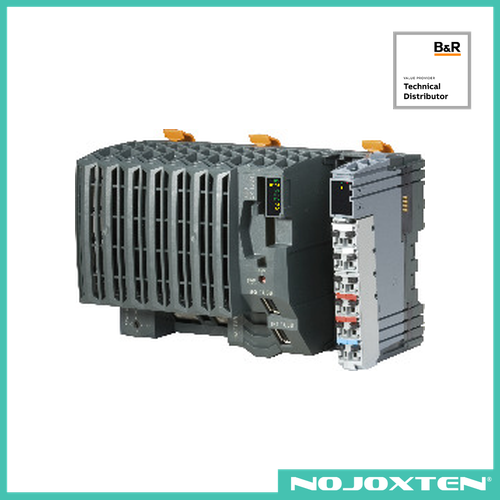

The controller is based on an Atom processor clocked at 0.6 GHz and equipped with 256 MB DDR2 SDRAM. USB, Ethernet, POWERLINK and removable CompactFlash are all included as standard features. A Gigabit Ethernet interface is a standard feature. For even more real-time network performance, the onboard POWERLINK interface supports poll response chaining mode (PRC).The controller is equipped with one slot available for X20 communication modules. Various bus and network systems can easily be integrated into the X20 system through the use of communication modules.

This module can be used to determine paths and to calculate speeds at the same time. The ultrasonic transducer rods are connected directly to the RS422 interface. Communication to the transducer rod takes place using start/stop signals. With the DPI/IP protocol, it is also possible, for example, to read operational properties directly from the transducer. During service (when a transducer is being exchanged) the machine can be started again quickly without additional configuration work. The module is designed for connecting 2 transducer rods with a total of up to 4 paths. That means, for example, that 2 ultrasonic transducers with 2 magnets each or one with 4 magnets can be used. The combination 3/1 is also possible. The module provides 24 VDC as an external supply for the sensor.

X20 DIGITAL 2XI, 24V, SINK,2 COUNT.,3 W.

X20 DIGITAL 6XI, 100-120VAC

X20 DIGITAL 8XI, 24V, SINK, 1 WIRE

X20 DIGITAL 12XI, 24V, SINK, 1 WIRE

X20 DIGITAL 16XI, 24V, SINK, 1 WIRE

X20 DIGITAL MIX 8XI 4XO, 24V 0.5A 1 L.

X20 DIGITAL 2XO, 230VAC 2A PHASE CONTROL

X20 DIGITAL 4XO, 24V 0.5A, SOURCE, 3 W.

X20 DIGITAL 4XO, 24V 2A, SOURCE, 3 W.

X20 DIGITAL 4XO, 230VAC 1A PHASE CONTROL

X20 DIGITAL 6XO, RELAY NO 115 VAC, 0.5A

X20 DIGITAL 8XO, 24V 0.5A, SOURCE, 1 W.

X20 DIGITAL 8XO, 24V 2A, SOURCE, 1 W.

8 DIGITAL IMPUT WITH 2A SOURCE CIRCUIT 1-WIRE CONNECTIONS PORWER SUPPLY INTEGRATED IN THE MODULE INTEGRATED OUTPUT PROTECTION THE MODULE IS EQUIPPED WITH 8 OUTPUT FOR 1-WIRE CONNECTIONS. THE NOMINAL OUTPUT CURRENT IS 2A.

X20 DIGITAL 12XO, 24V 0.5A, SOURCE, 1 W.

X20 DIGITAL 8XO, 24V, SOURCE, 2 WIRE
