X20 DIGITAL 4XO, 230VAC 1A PHASE CONTROL

X20 DIGITAL 4XO, RELAY NO 230VAC 5A

X20 DIGITAL 6XO, RELAY NO 115 VAC, 0.5A

X20 DIGITAL 8XO, 24V 0.5A, SOURCE, 1 W.

X20 DIGITAL 8XO, 24V 2A, SOURCE, 1 W.

8 DIGITAL IMPUT WITH 2A SOURCE CIRCUIT 1-WIRE CONNECTIONS PORWER SUPPLY INTEGRATED IN THE MODULE INTEGRATED OUTPUT PROTECTION THE MODULE IS EQUIPPED WITH 8 OUTPUT FOR 1-WIRE CONNECTIONS. THE NOMINAL OUTPUT CURRENT IS 2A.

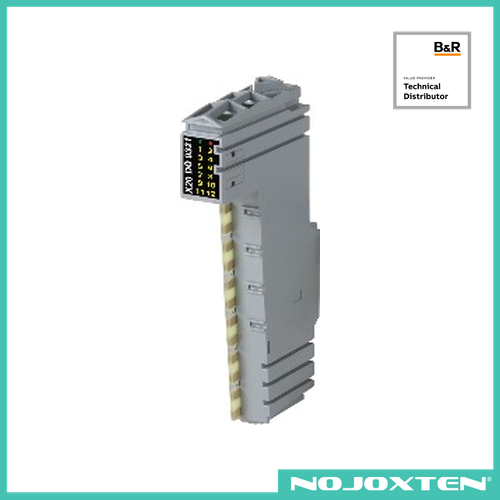

X20 DIGITAL 12XO, 24V 0.5A, SINK, 1 W.

X20 DIGITAL 12XO, 24V 0.5A, SOURCE, 1 W.

X20 DIGITAL 8XO, 24V, SOURCE, 2 WIRE

X20 DIGITAL 16XO, 24V 0.5A, SOURCE, 1 W.

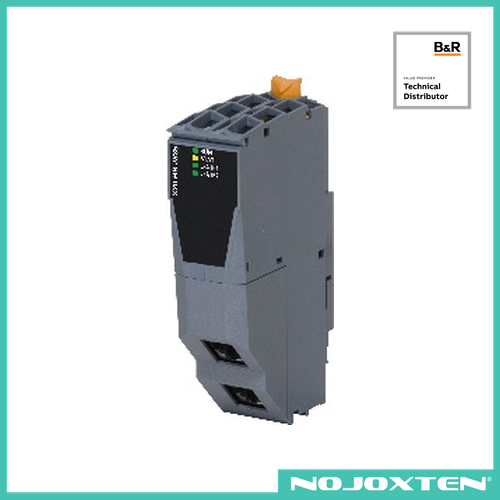

X20 HUB MODULE 2X 100 BASE-T, REDUNDANCY

POWERLINK is a standard protocol for Fast Ethernet with hard real-time properties. The Ethernet POWERLINK Standardization Group (EPSG) ensures that the standard remains open and is continually developed. www.ethernet-powerlink.orgSystems with redundant cabling can be implemented easily using POWERLINK. Unlike ring redundancy, cable redundancy does not require cable looping, which can sometimes be problematic. This allows the creation of all types of tree structures. When using a device with the link selector function, data is always transferred via the highest quality network lines. The link selector function is integrated in the module compact link selector. This makes it easy to connect any POWERLINK device to a redundant POWERLINK network.

X20 IF-DUMMY MODULE (ZERO FUNCTION)

X20 INTERFACE RS422/485

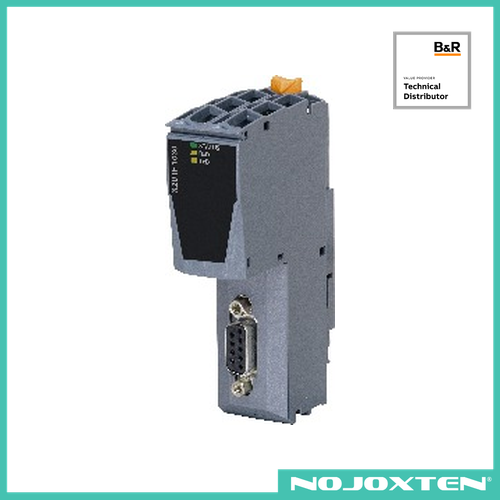

The interface module is equipped with a PROFIBUS DP V1 interface. This allows third-party components to be integrated in the B&R system and makes it possible to quickly and easily transfer data in both directions.The interface module can be operated in X20 CPUs or in the expandable POWERLINK bus controller X20BC1083.

The interface module is equipped with a PROFIBUS DP V1 interface. This allows the B&R system (I/O modules, POWERLINK, etc.) to be connected to systems from other manufacturers and makes it possible to quickly and easily transfer data in both directions.The interface module can be operated in X20 CPUs or in the expandable POWERLINK bus controller X20BC1083.

The interface module is equipped with an EtherNet/IP scanner interface. This allows third-party components to be integrated in the B&R system and makes it possible to quickly and easily transfer data in both directions.The interface module can be operated in X20 CPUs or in the expandable POWERLINK bus controller X20BC1083. The interface is equipped with 2 RJ45 connections. Both connections result in an integrated switch. This makes it easy to implement daisy chain cabling.

The interface module is equipped with a PROFINET IO controller interface. This allows third-party components to be integrated in the B&R system and makes it possible to quickly and easily transfer data in both directions.The interface module can be operated in X20 CPUs or in the expandable POWERLINK bus controller X20BC1083. The interface is equipped with 2 RJ45 connections. Both connections result in an integrated switch. This makes it easy to implement daisy chain cabling.

The interface module can be used to expand the X20 CPU for specific applications. It is equipped with 2 CAN bus interfaces.

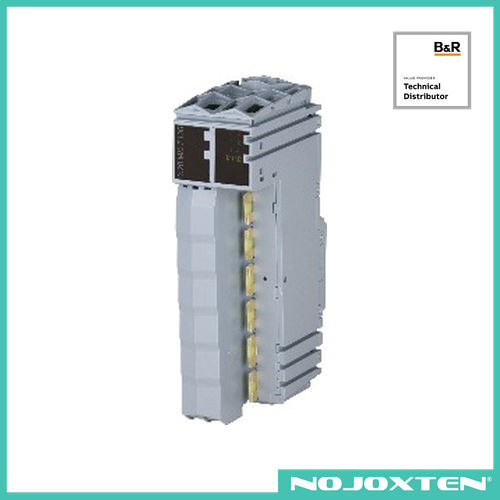

The motor bridge module is used to control 2 DC motors with a nominal voltage of 24 to 39 VDC ±25% at a nominal current up to 3 A. The module can be reconfigured and used in current controller mode for controlling inductive loads. The module is also equipped with 4 digital inputs, which can be used as incremental counters. Each motor is controlled with a full-bridge (H-bridge). This enables the motors to be moved in both directions.
